Access Control
Compact Side-Mount Design
Supports convenient side installation where space is limited
Precision Motor Control
DC brushless motor delivers smooth, accurate movement with low noise
Multiple Anti-Fall Safety Modes
Supports IR sensors, vehicle detectors, & radar to prevent accidental drops
Adjustable Closing Delay
Configurable boom closing delay from 1 to 99 seconds for safe vehicle clearance
Consistent Opening & Closing Speed
Optimised rising and falling speeds ensure predictable traffic flow
High Duty Cycle Operation
Designed for continuous use without performance degradation
Flexible Boom Direction
Supports both left and right boom configurations
Long Mechanical Life
Engineered for millions of open-close cycles in demanding conditions
Corporate Campuses &
Residential Complexes
Commercial Parking
Facilities
Toll Plazas &
Controlled Entry Roads
Government
and
Utility
Installations

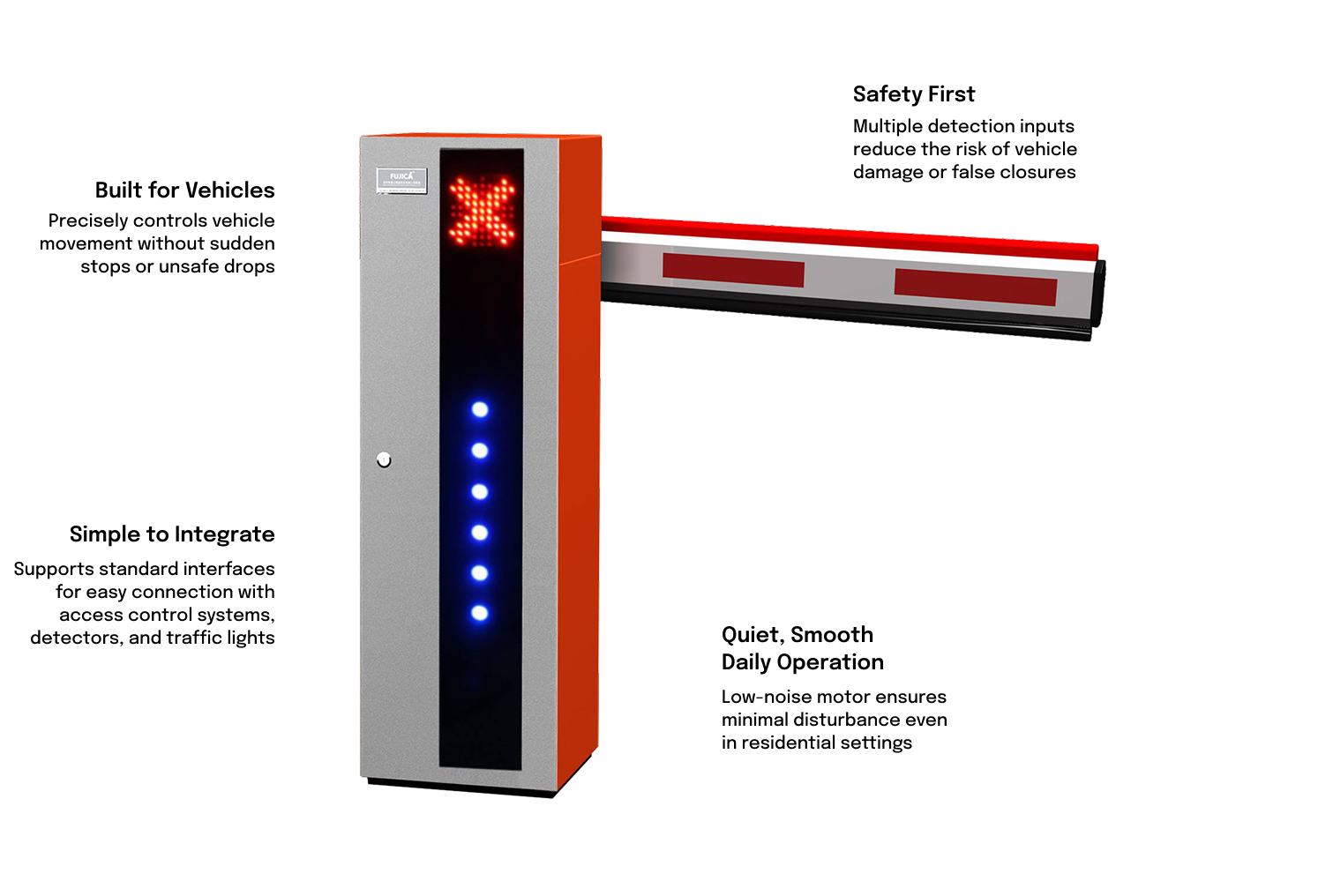

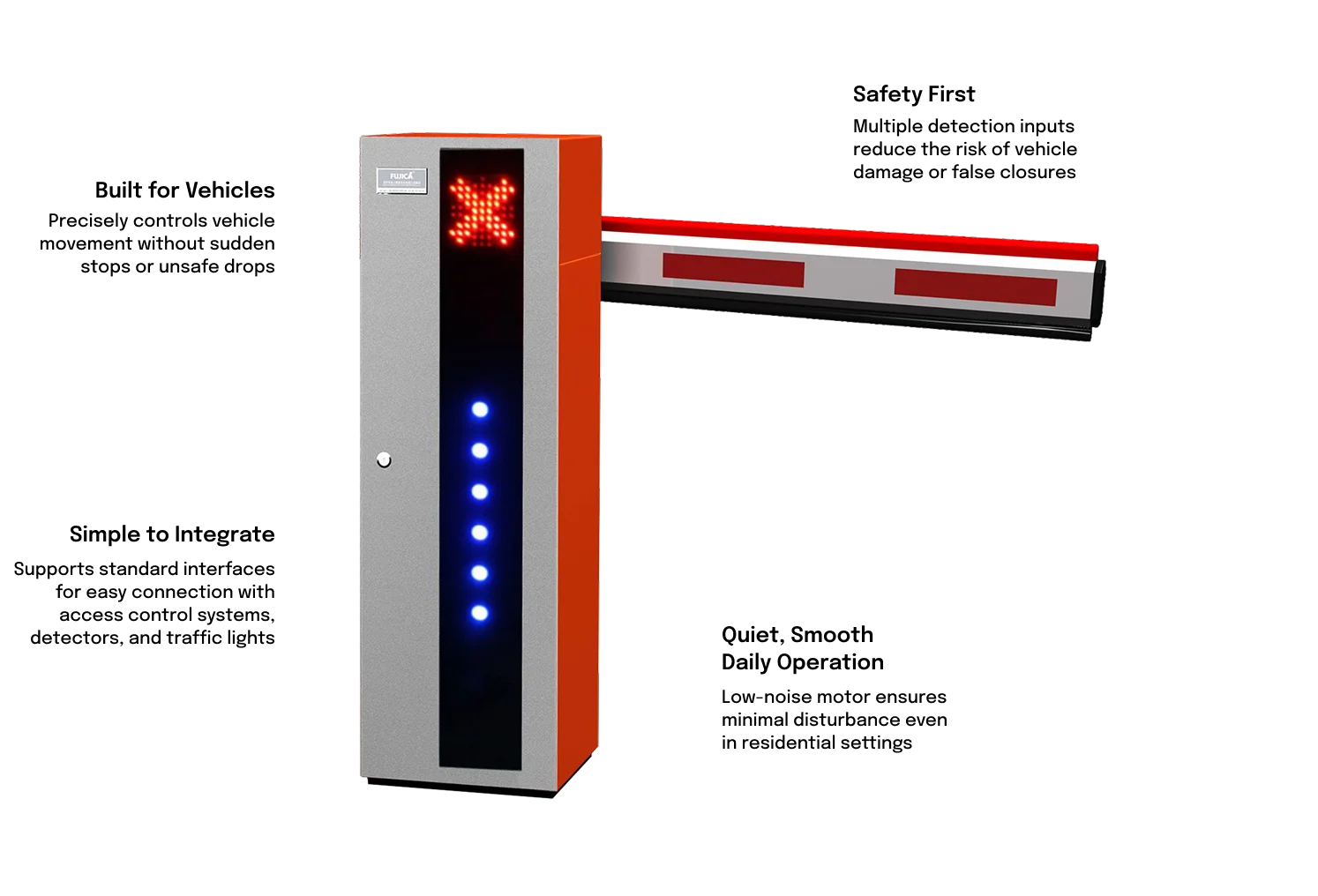

The straight barrier is built for controlled vehicle entry and exit, combining intelligent motor control and multiple safety protections.
Our devices have 3-year warranties, and our dedicated 12 hour Customer helpdesk center is equipped to help you with any service and maintenance requirements.
DC brushless motor
2,500,000
100 W
110-240VAC ( default 220V，Switchable ) Approval Protection: IP54
26 ± 0.2 kg (57.32 ± lb.)
White background with red bar
Octagonal boom pole
1 to 99 s
Left/Right
4.5 m telescopic boom pole: 4.8 ± 0.2 kg 6 m telescopic boom pole: 6.5 ± 0.2 kg
(With Package, Without Boom Pole) (L × W × H) 385 × 305 × 1060 mm (15.16 × 12 × 41.73 inch)
(With Package): 4.5 m telescopic boom pole: 5.4 ± 0.2 kg 6 m telescopic boom pole: 7.1 ± 0.2 kg
325mm (L) × 220mm (W) × 1000mm (H) (12.8inch (L) × 8.67inch (W) × 39.37inch (H))
X × 44 × 110 mm (H×W×L)
(With Package, Without Boom Pole): 29.1 ± 0.2 kg (64.15 ± 0.44 lb.) Barrier Gate Duty Cycle: 100%
6063
Cold-rolled sheet
Black background with sliver pattern
SUS304 stainless steel pipe
SUS304 stainless steel thickness 1.5 mm (0.06")
100 to 240 VAC; 50 to 60 Hz
1.2 mm
1.0 mm
880 mm
Black background with sliver pattern
Optional Package
None
4.5 m telescopic boom pole: 115 × 47 × 2530 mm (H×W×L) 6 m telescopic boom pole: 115 × 47 × 3435 mm (H×W×L)
Rising Speed: 3 S
Falling Speed: 3 S
Rising Speed: 3 S
Falling Speed: 3 S
Rising Speed: 3 S
Falling Speed: 3 S
Temperature: -30 °C to 80 °C (-22 °F to 176 °F)
Humidity: ≤ 90%
